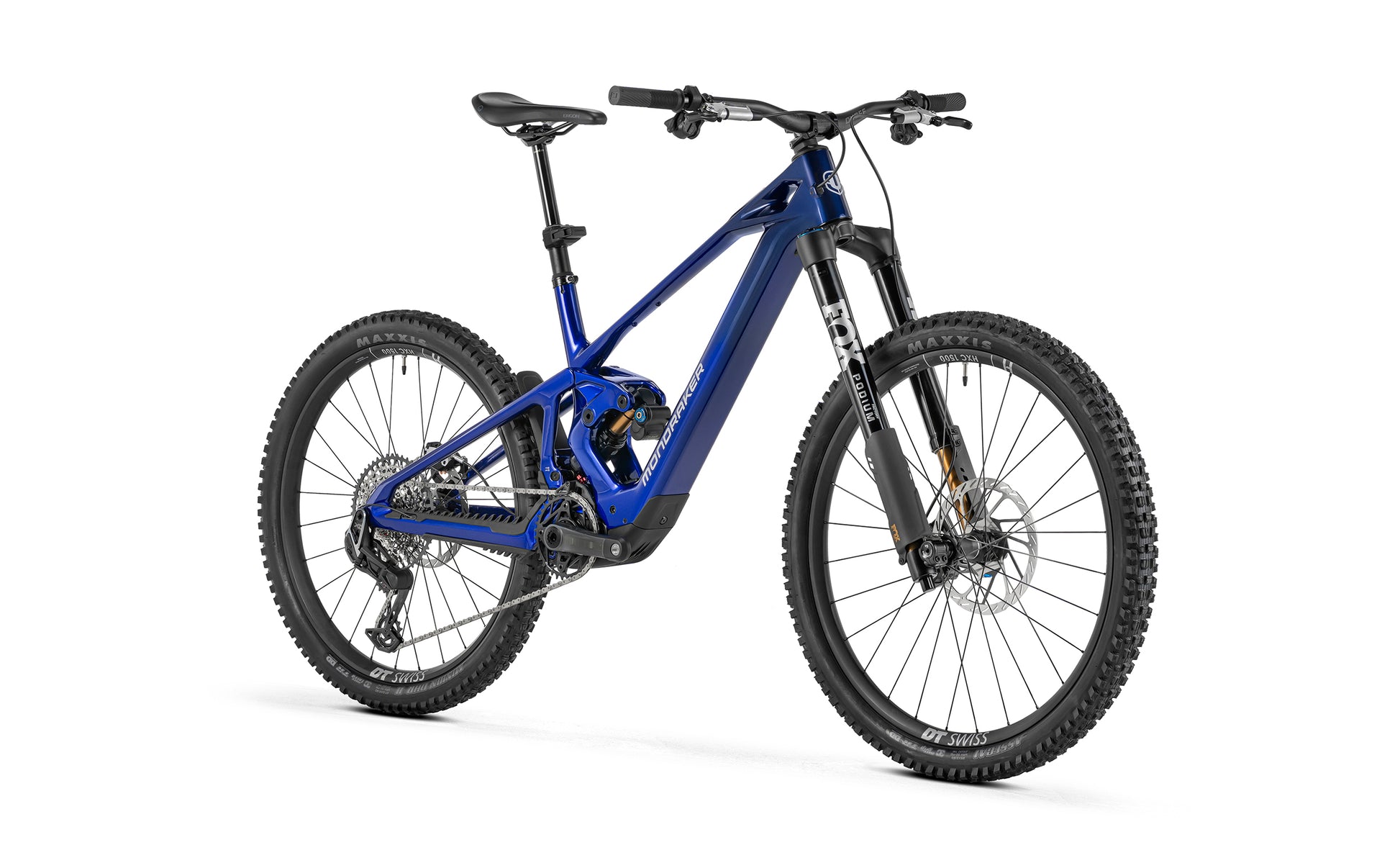

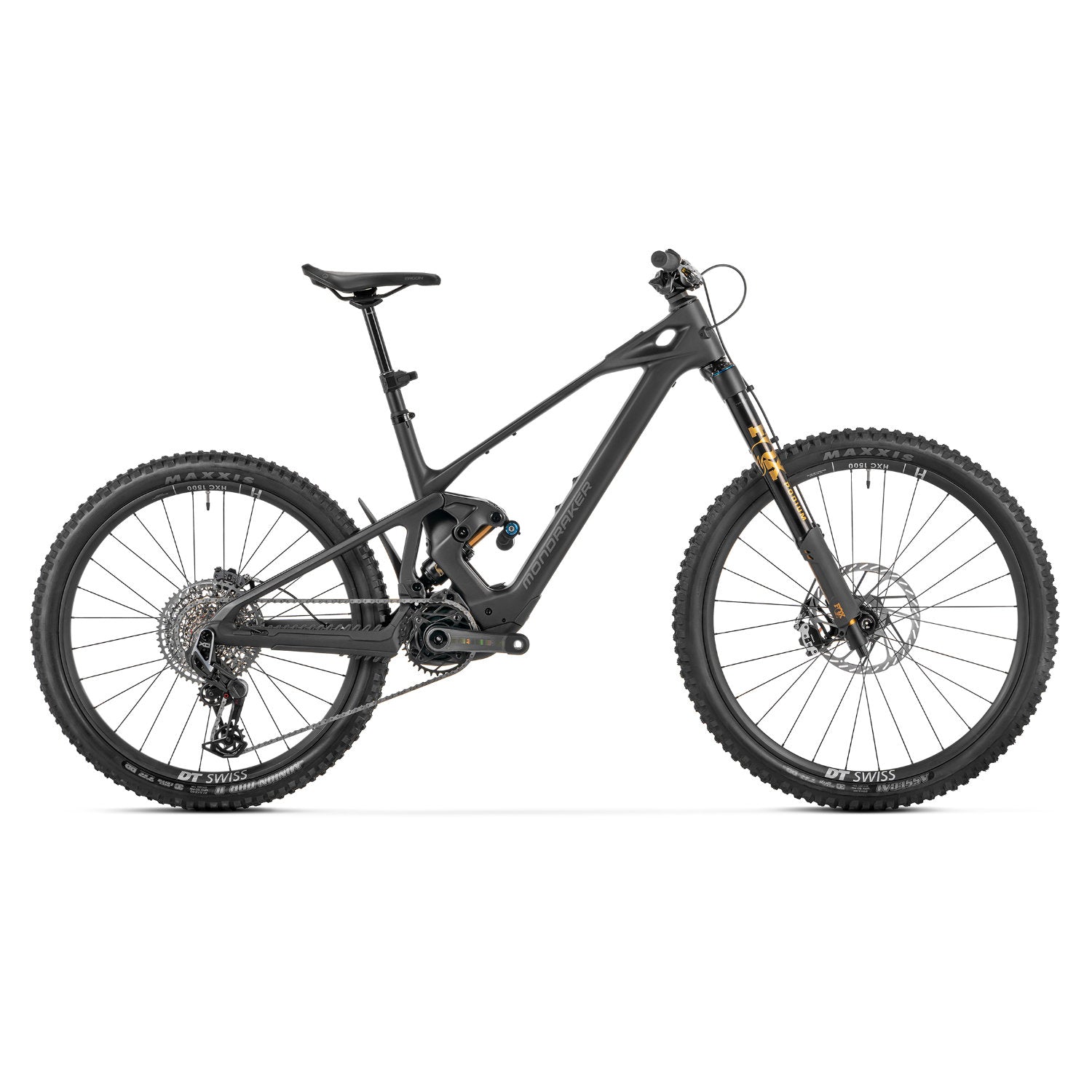

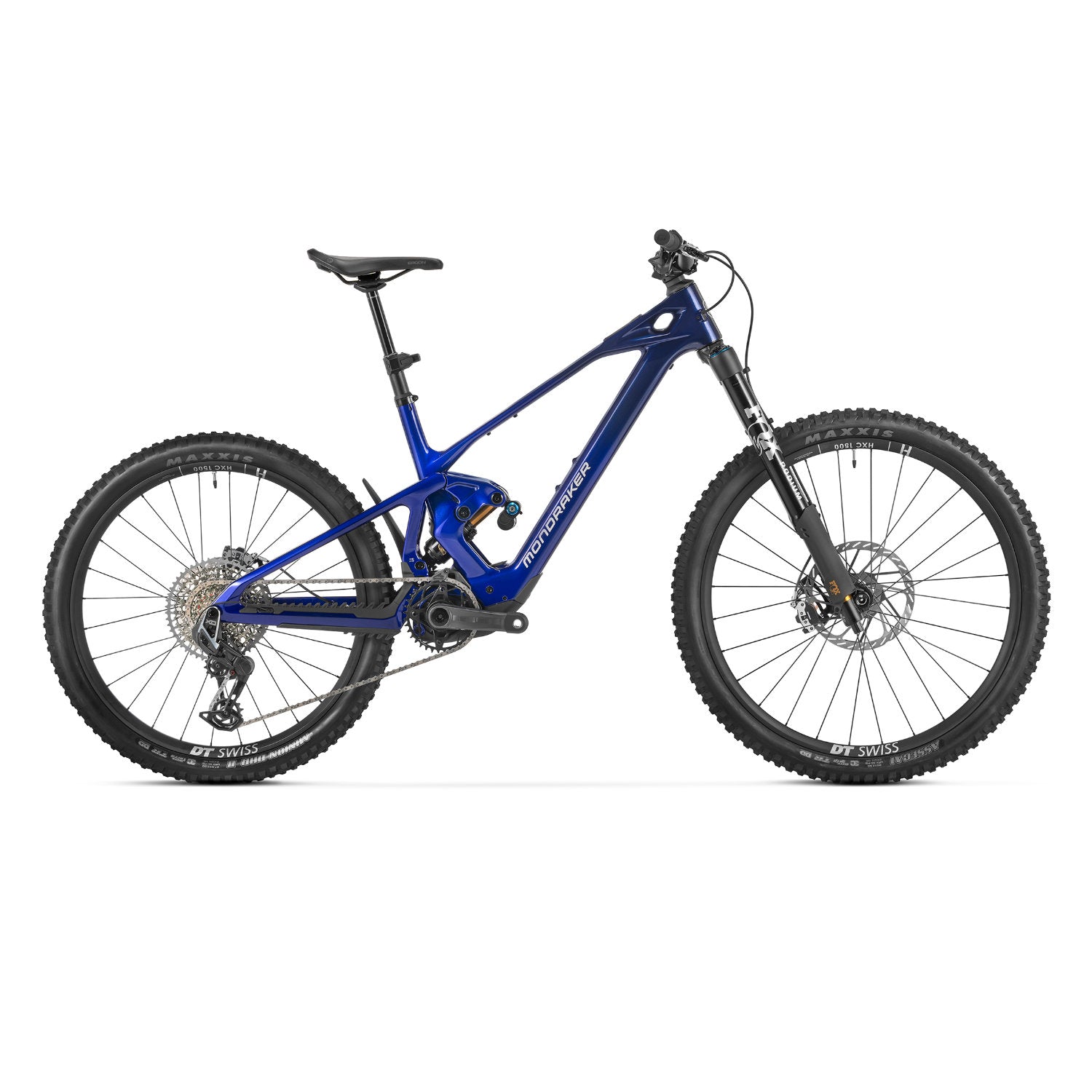

Zendit XR

RAHMEN

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

GRÖßE

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

DÄMPFER

Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

DÄMPFEREINSTELLUNGEN

CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.

GABEL

Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

STEUERSATZ

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.

VORBAU

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

LENKER

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

GRIFFE

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

SATTELSTÜTZE

RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.

SATTEL

Ergon SM10 E-Mountain Black.

BREMSE VORN

Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BREMSE HINTEN

Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

BREMSHEBEL

Sram Maven Ultimate , Carbon lever, SwingLink and lever pivot bearings, tools-free reach adjust

FELGEN

DT Swiss Hybrid HXC 1500 Spline, Carbon, 30mm internal width, tubeless ready, 28 spokes.

SPEICHEN

DT Swiss Straightpull spokes, DT Hybrid II, black

NABE VORN

DT Swiss 350, 20x110mm Boost, Disc IS (6-bolt).

NABE HINTEN

DT Swiss 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub

REIFEN VORN

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

REIFEN HINTEN

Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

KURBELN

e*thirteen Helix Race Carbon e*spec. All sizes: 155mm

KETTENBLÄTTER

Sram Eagle 36T T-Type, 104BCD, steel, CL55

KETTE

Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

SCHALTWERK

Sram X0 Eagle AXS T-Type, 12s

SCHALTHEBEL

Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

KASSETTE

Sram XS 1275, 10-52T, T-Type, 12s

SONSTIGES

Sram AXS Extension Cord / Avinox 12A Charger

GEWICHT

23.1 Kg

DISPLAY

Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

MOTOR

Avinox M2S

BATTERIE

Avinox 800Wh Battery
