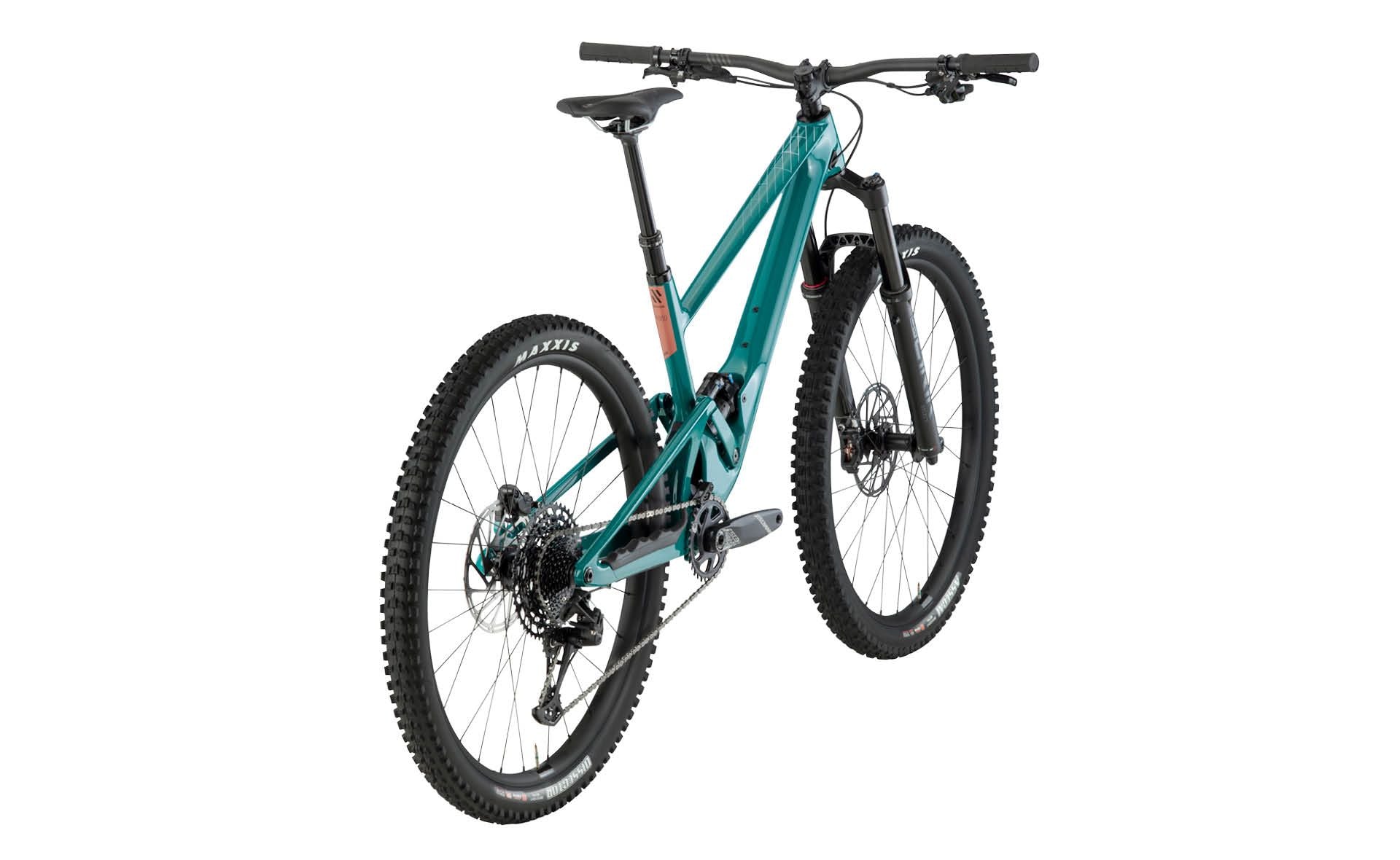

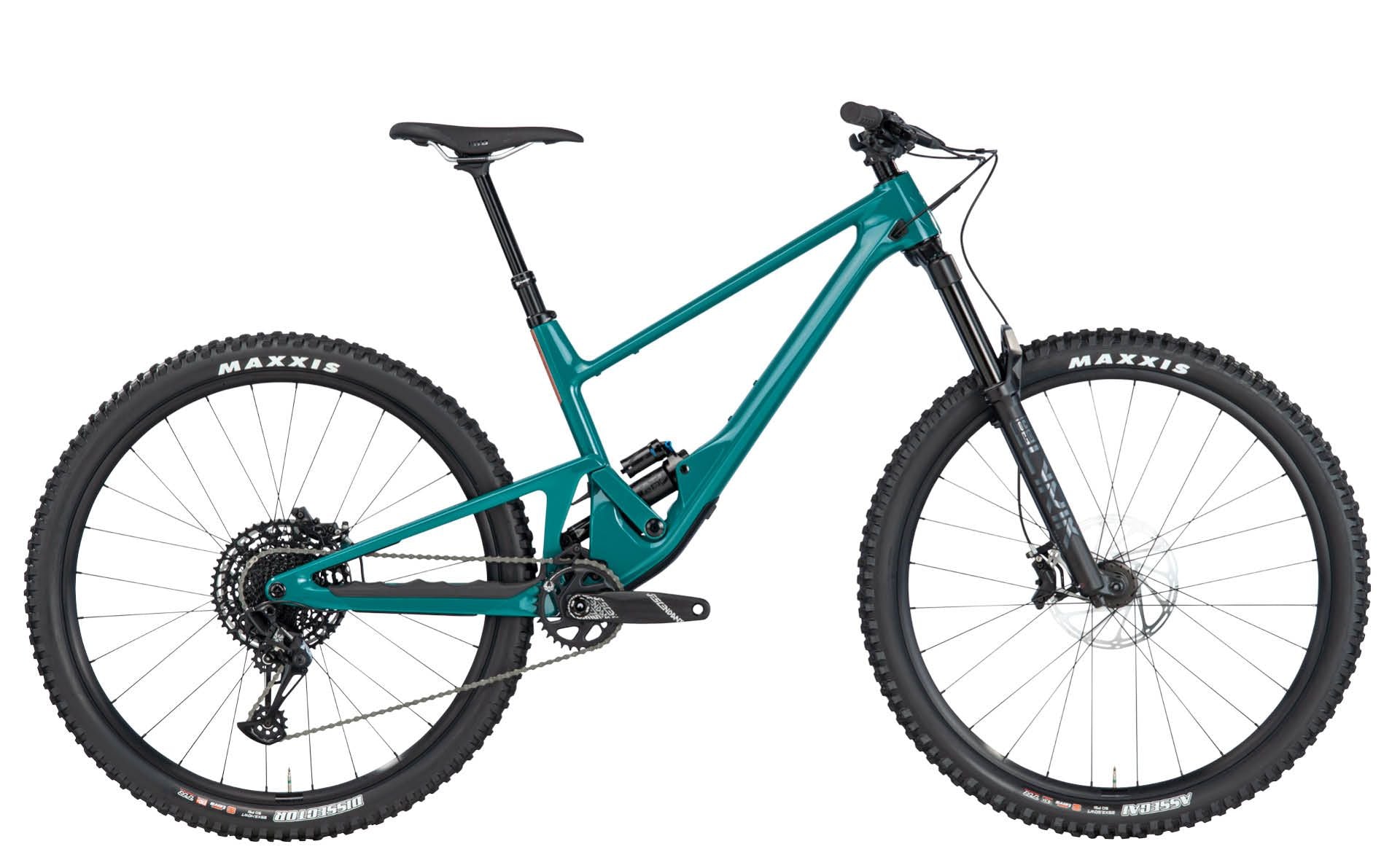

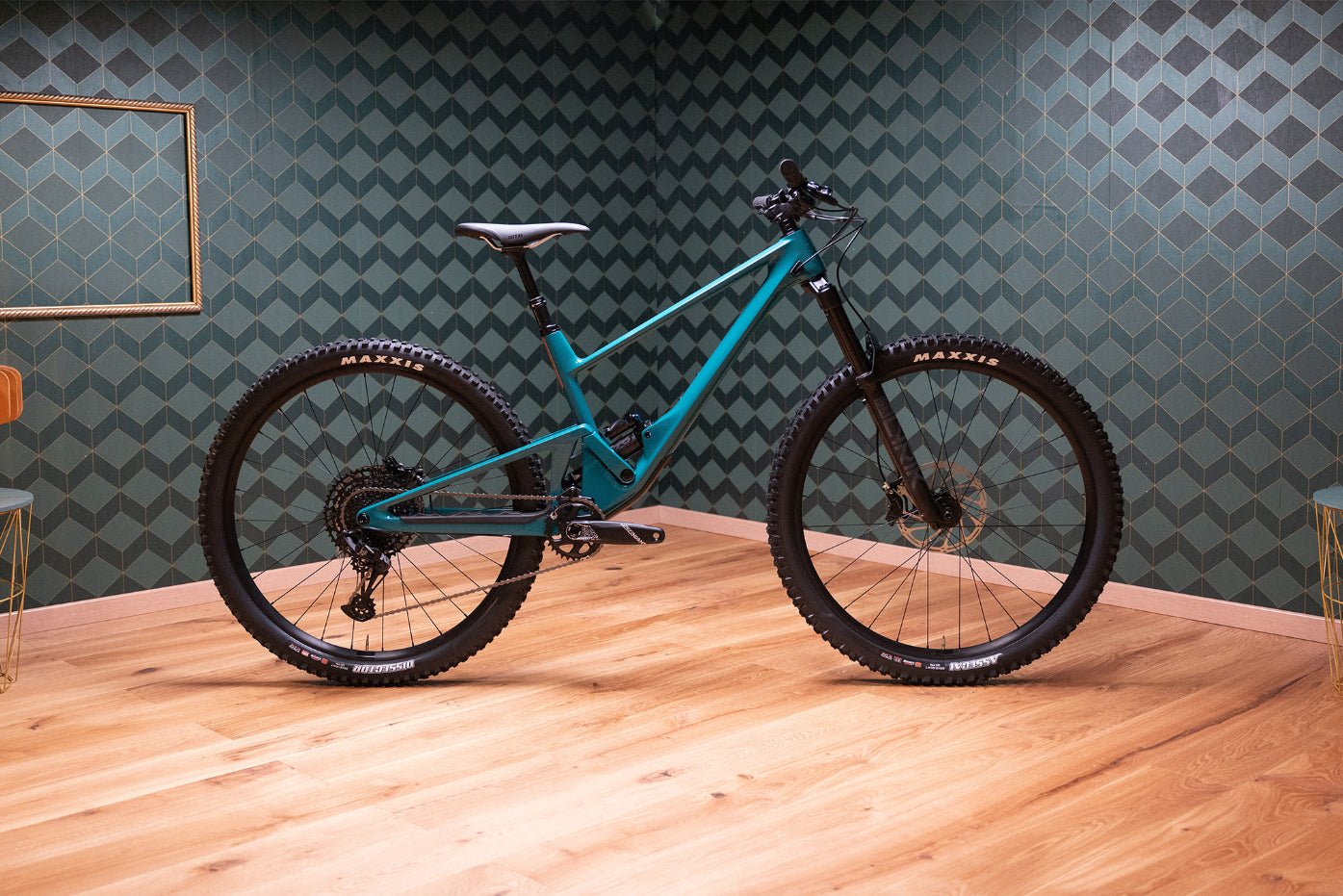

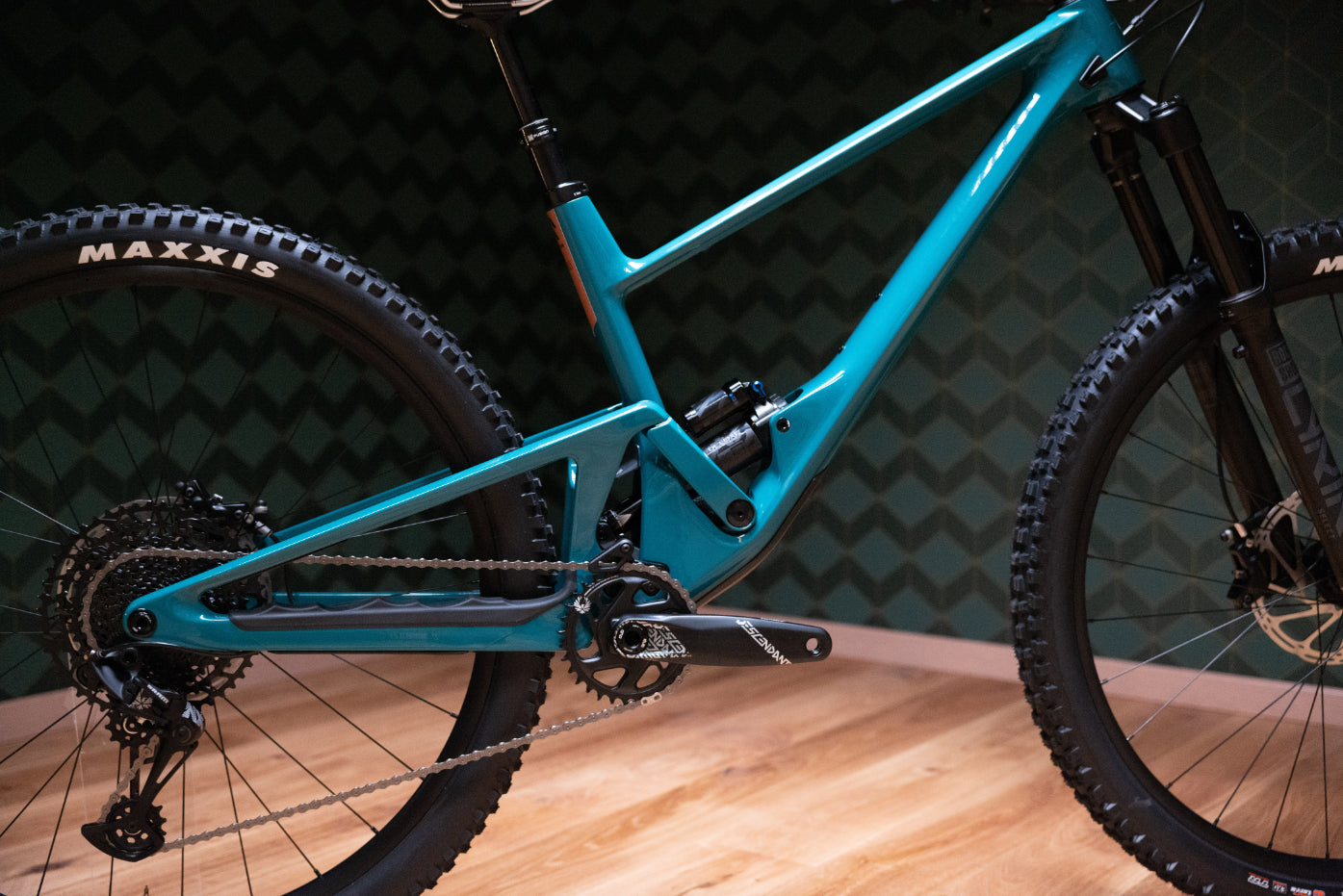

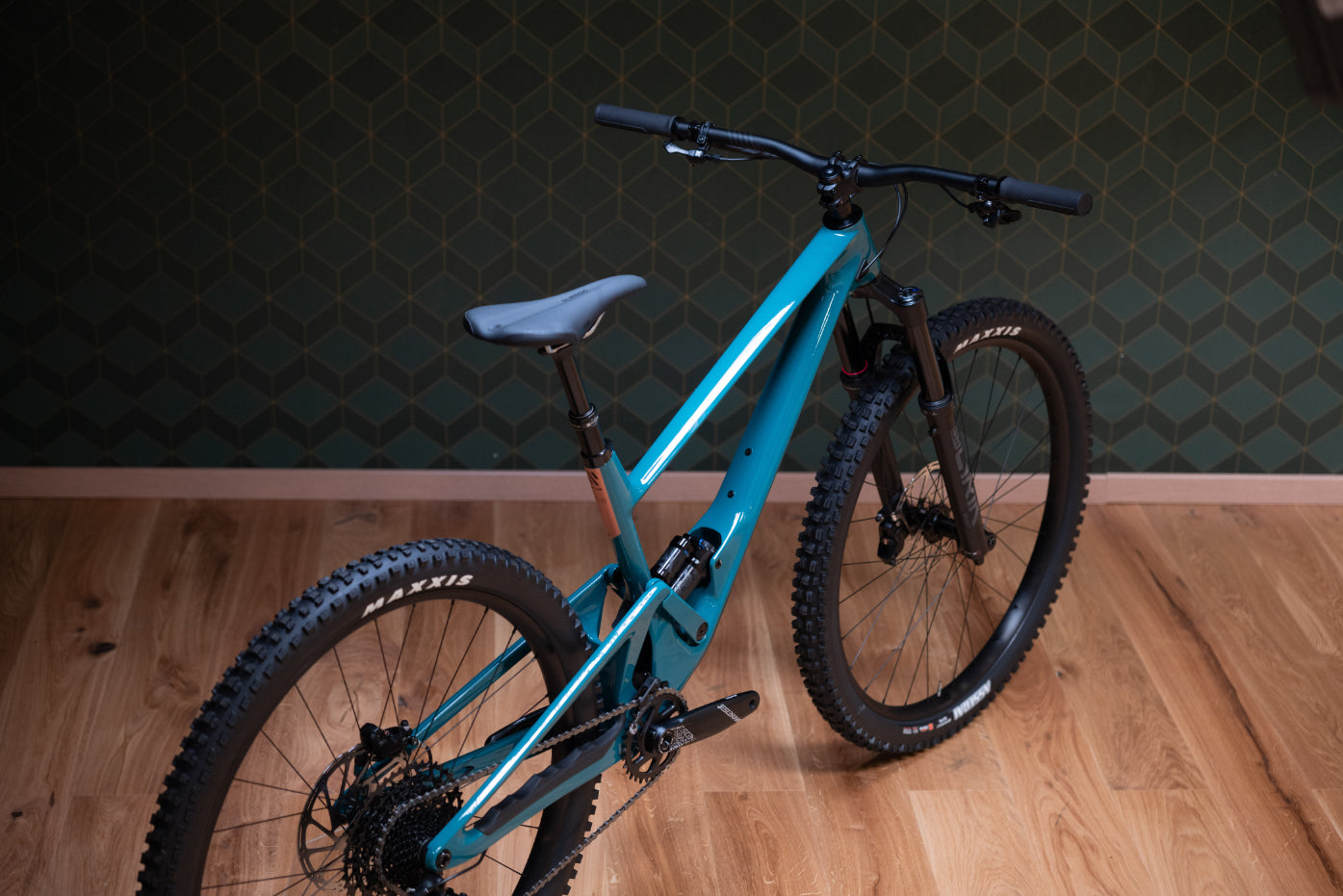

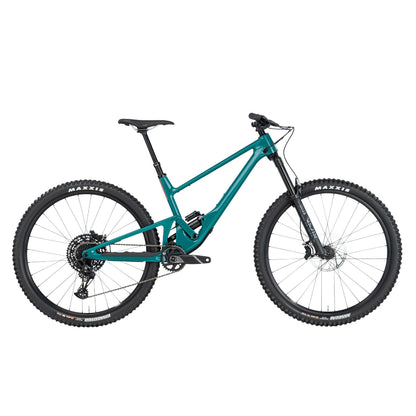

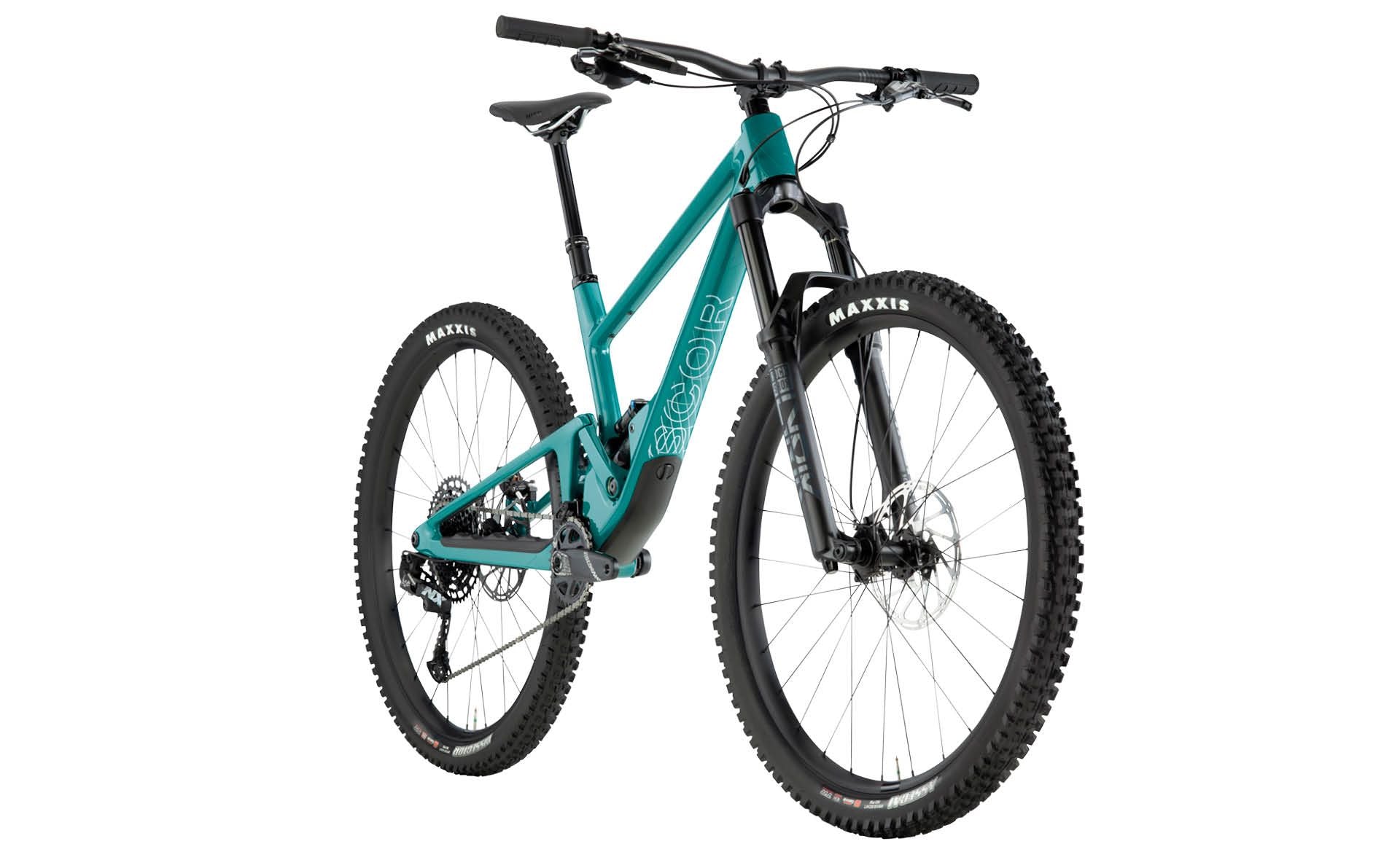

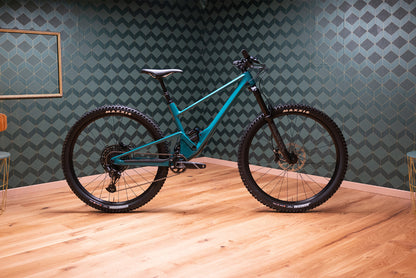

4060 ST NX 2024

RAHMEN:

SCOR 4060 full carbon frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide

GABEL:

FEDERGABEL:

RockShox Lyrik Select RC | 150mm travel | 44mm rake

DÄMPFER:

RockShox Super Deluxe Select+ RT Hydraulic Bottom Out | 205x57.5mm Trunnion

LENKER:

SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep

VORBAU:

SCOR Alloy Stem | 31.8mm bar bore | 35 mm length | 0° angle

SATTELSTÜTZE:

X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel

SATTEL:

WTB Silverado Medium Steel SL

ÜBERSETZUNG:

1 x 12

KURBEL:

SRAM Descendant 6K Eagle | 170 mm length | 32T chainring | DUB Interface

KASSETTE:

SRAM NX Eagle (PG-1230) | 11-50T

KETTE:

SRAM NX Eagle

UMWERFER:

SCHALTWERK:

SRAM NX Eagle

SCHALTHEBEL:

SRAM NX Eagle Trigger

BREMSHEBEL:

SRAM Code R

BREMSSCHEIBEN:

SRAM Centerline | 200mm | 6 bolt

FELGEN:

XDX-530 | 28 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready

NABEN (V/H):

XDX-530 | 28 spokes | Sealed cartridge bearings

BEREIFUNG:

Maxxis Assegai 29 x 2.5" 3C MaxxTerra EXO TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra EXO+ TR (R)

TUBELESS-INFORMATIONEN:

Tubeless ready rims | Tubeless tires

MAXIMALE REIFENGRÖSSE:

Width: 64mm | Diameter: 750mm

ASTM-KLASSIFIZIERUNG:

Level 4

GEWICHTSGRENZE:

120kg
