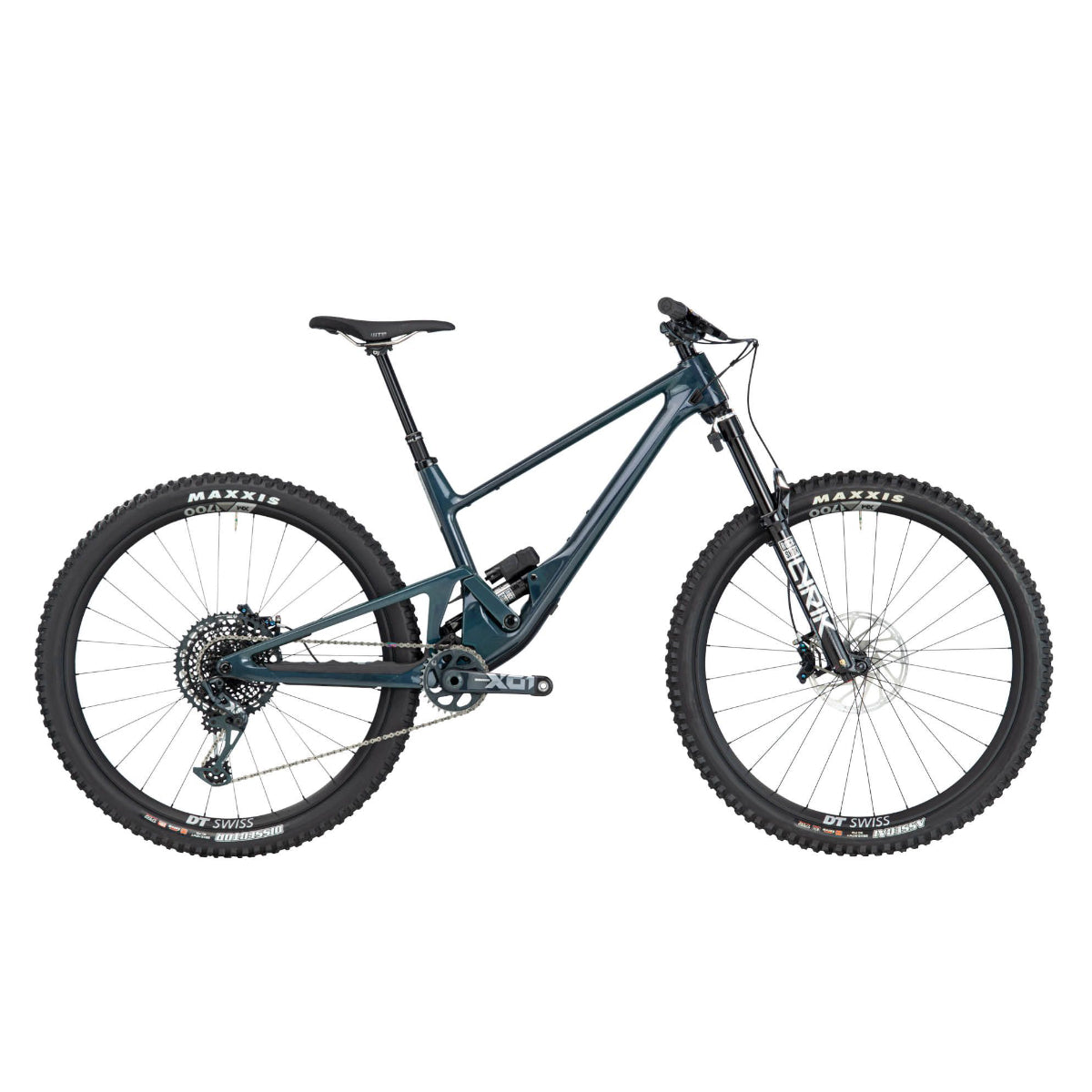

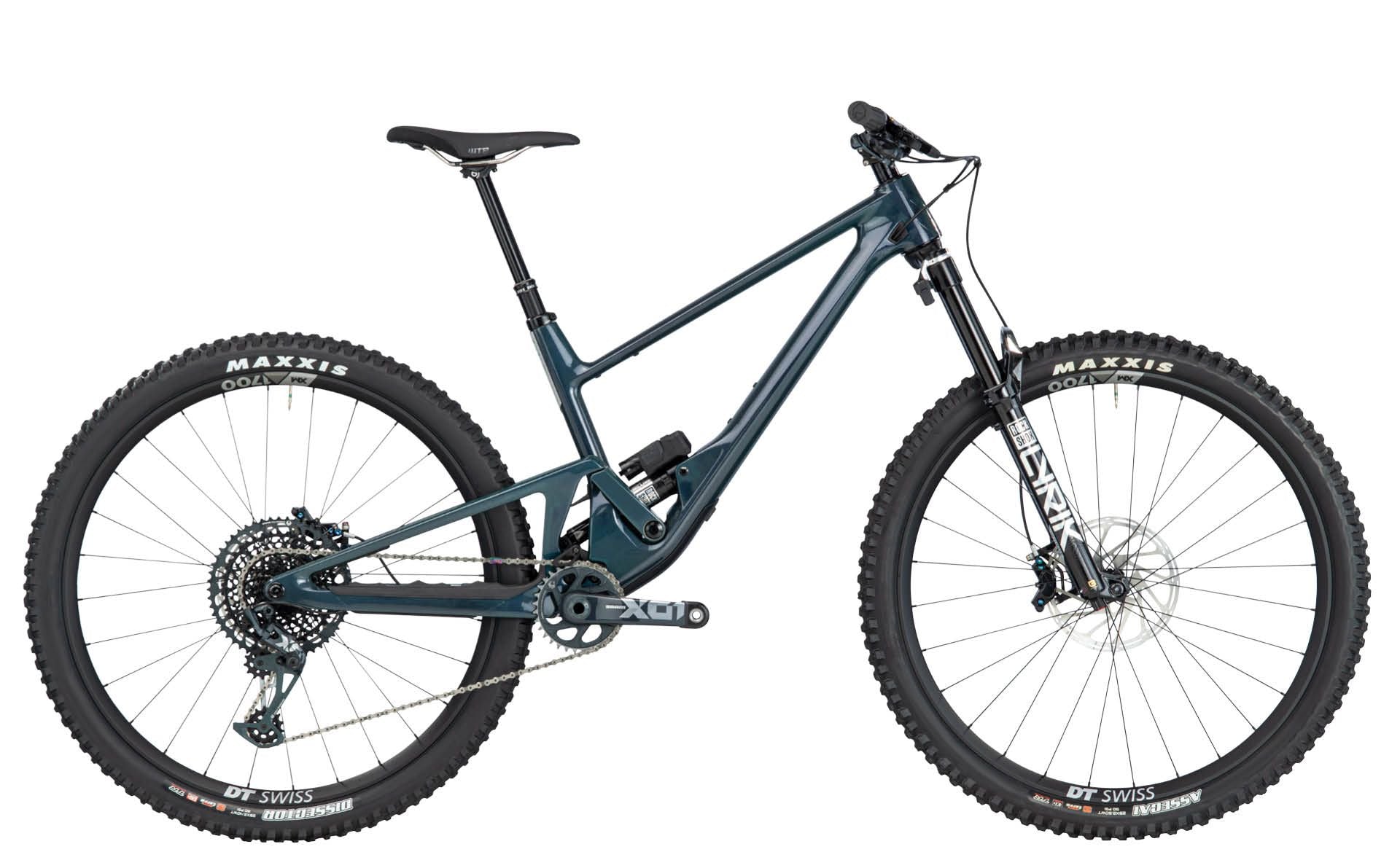

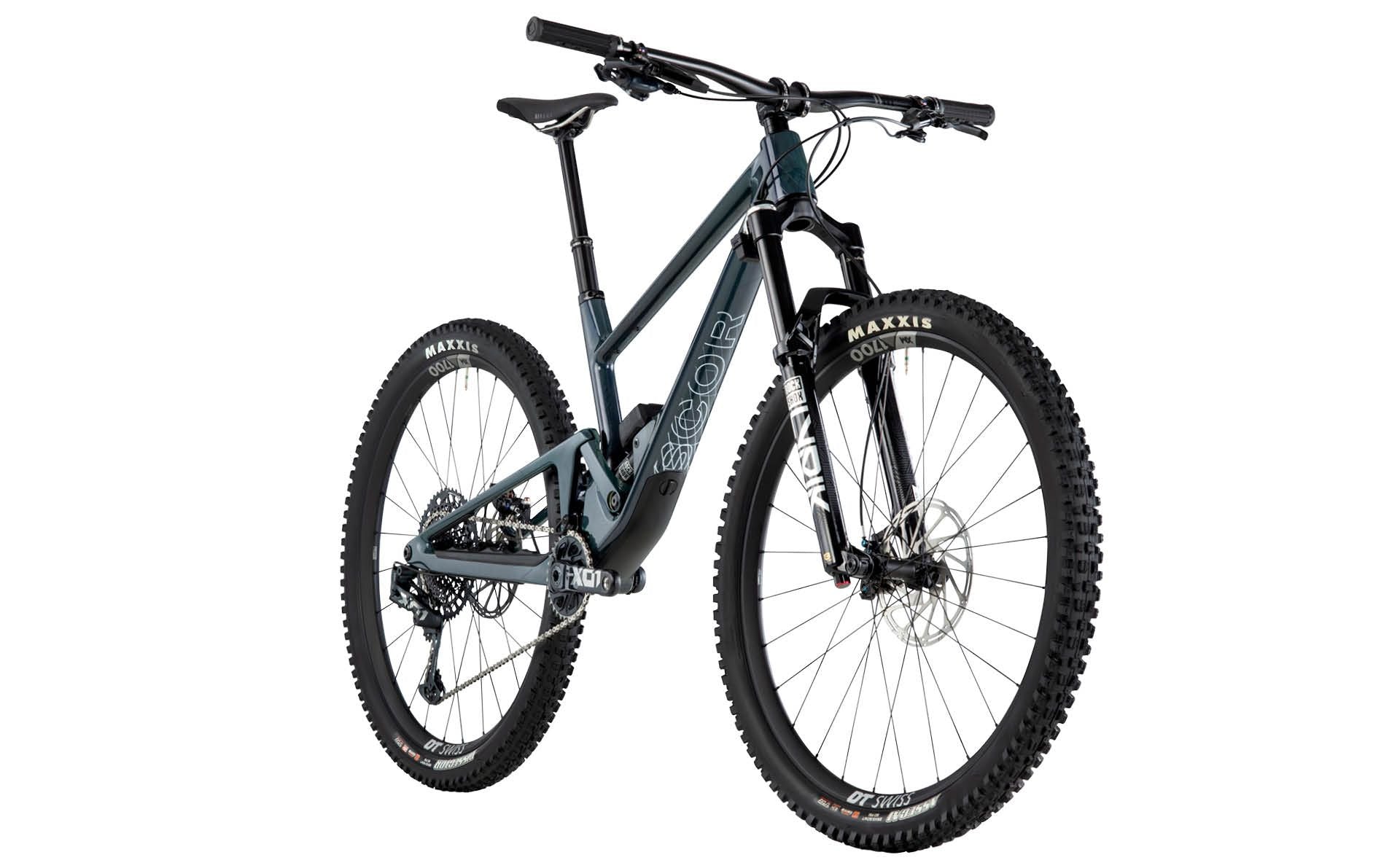

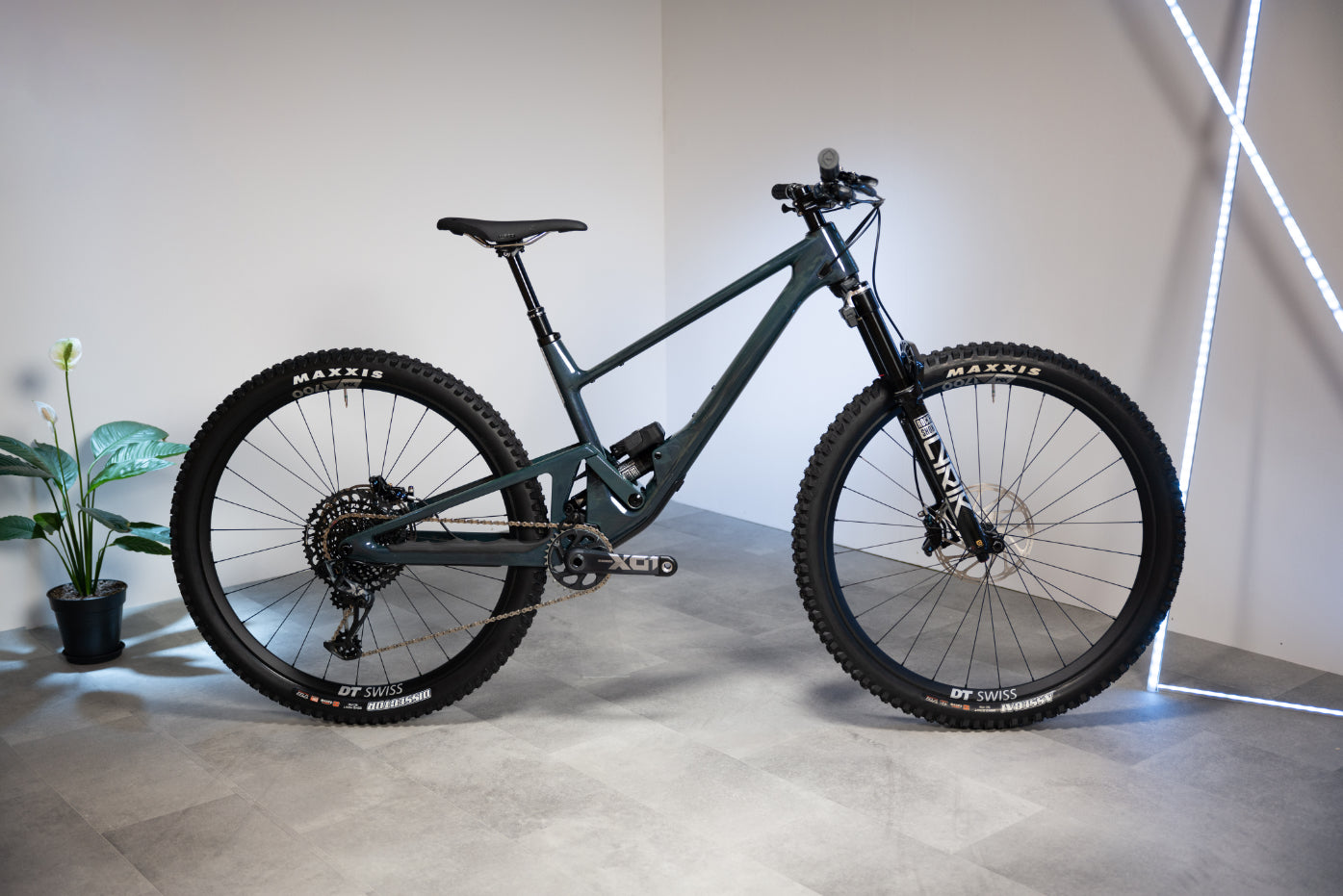

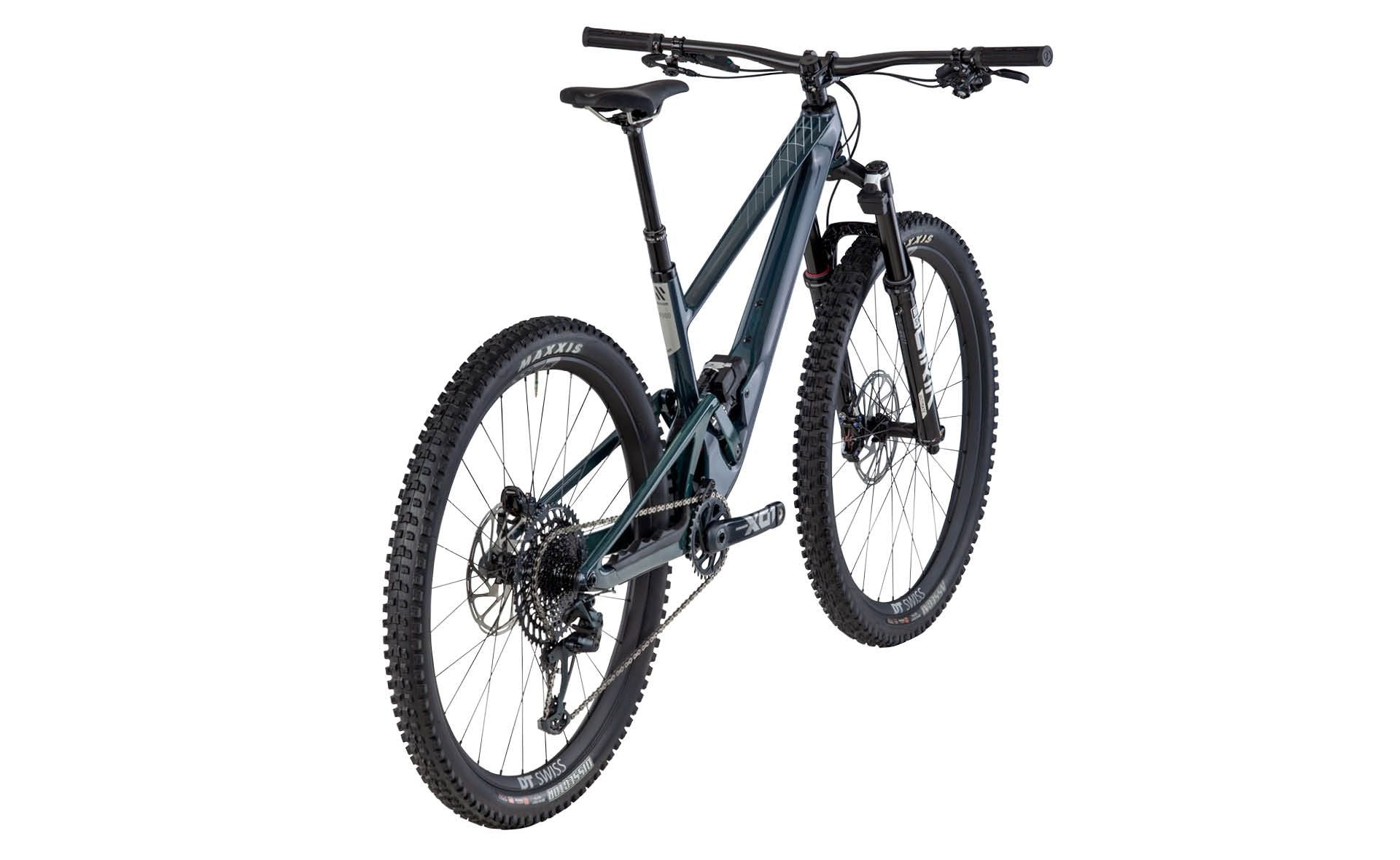

4060 ST LTD 2024

RAHMEN:

SCOR 4060 full carbon frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm rear wheel travel | Fully guided internal cable routing | Stash box | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide

GABEL:

FEDERGABEL:

RockShox Lyrik Ultimate Flight Attendant | 150mm travel | 44mm rake

DÄMPFER:

RockShox Super Deluxe Flight Attendant RC3 Hydraulic Bottom Out | 205x57.5mm Trunnion

LENKER:

SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep

VORBAU:

Burgtec Enduro MK3 | 31.8mm bar bore | 35mm length | 0° angle

SATTELSTÜTZE:

Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm travel | Triggy Alpha lever

SATTEL:

WTB Silverado Medium Titanium

ÜBERSETZUNG:

1 x 12

KURBEL:

SRAM X01 Flight Attendant Carbon | 170mm length | 32T chainring | DUB Interface

KASSETTE:

SRAM X01 Eagle (XG-1295) | 10-52T

KETTE:

SRAM X01 Eagle

UMWERFER:

SCHALTWERK:

SRAM X01 Eagle

SCHALTHEBEL:

SRAM X01 Eagle Trigger

BREMSHEBEL:

SRAM Code RSC

BREMSSCHEIBEN:

SRAM Centerline | 200mm | 6 bolt

FELGEN:

DT Swiss XM 1700 Spline | 30mm internal width | Tubeless ready

NABEN (V/H):

DT Swiss 350 | Ratchet SL freehub | Straightpull spoke interface | Boost spacing

BEREIFUNG:

Maxxis Assegai 29 x 2.5" 3C MaxxTerra EXO TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra EXO+ TR (R)

TUBELESS-INFORMATIONEN:

Tubeless ready rims | Tubeless tires

MAXIMALE REIFENGRÖSSE:

Width: 64mm | Diameter: 750mm

ASTM-KLASSIFIZIERUNG:

Level 4

GEWICHTSGRENZE:

120kg
