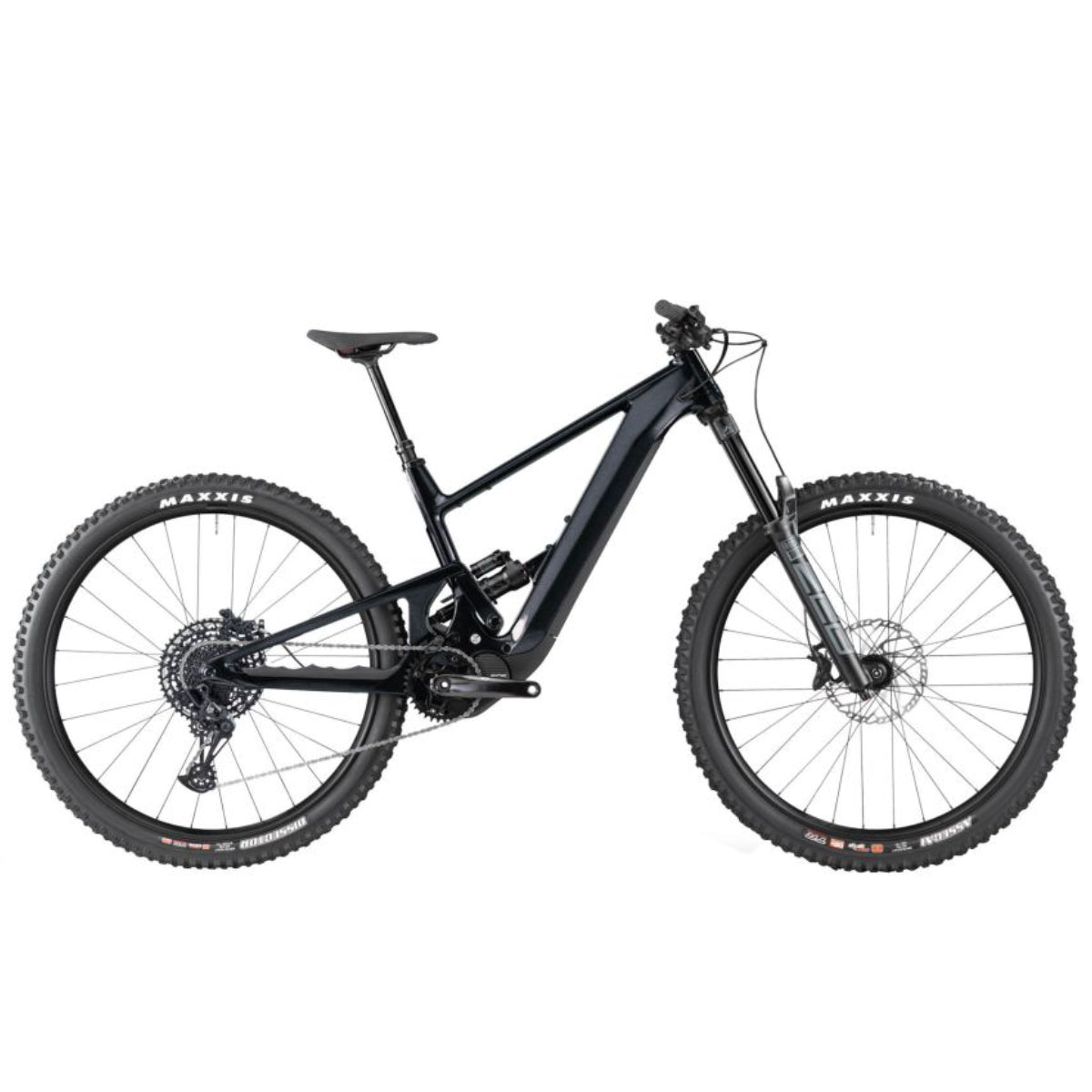

4060 Z LT NX 2024
4060 Z LT NX 2024
AMP SPECS
MOTOR:
Shimano Steps EP8 (DU-EP801)
AKKU:
Darfon 36V | 720Wh | Shimano Steps service included
STEUERUNG DER ANTRIEBSEINHEIT:
Shimano Steps EP8 Left Switch Unit (SW-EM800-L)
DISPLAY:
Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
LADEGERÄT:
Darfon Smart Plus 100-240V | 4A | EU
FRAMESET
RAHMEN:
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Boost 148 | SRAM UDH
GABEL:
RockShox ZEB Select RC2 | 170mm travel | 44mm rake
SUSPENSION
FEDERGABEL:
RockShox ZEB Select RC2 | 170mm travel | 44mm rake
DÄMPFER:
RockShox Super Deluxe Select R Hydraulic Bottom Out | 210x55mm
COCKPIT
LENKER:
SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep
VORBAU:
SCOR Alloy Stem | 31.8mm bar bore | 35 mm length | 0° angle
SATTELSTÜTZE:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel
SATTEL:
WTB Silverado Medium Steel SL
DRIVETRAIN
ÜBERSETZUNG:
1 x 12
KURBEL:
Shimano FC-EM600 | 165 mm length | 34T X-Sync Eagle chainring
KASSETTE:
SRAM NX Eagle (PG-1230) | 11-50T
KETTE:
SRAM NX Eagle
SCHALTWERK:
SRAM NX Eagle
SCHALTHEBEL:
SRAM NX Eagle Trigger
BRAKES
BREMSHEBEL:
SRAM Code R
BREMSSCHEIBEN:
SRAM Centerline | 220mm (F) / 200mm (R) | 6-bolt
WHEELS
FELGEN:
XDH-130 | 32 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready
NABEN (V/H):
XDH-130 | 32 spokes | Sealed cartridge bearings
BEREIFUNG:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
TUBELESS-INFORMATIONEN:
Tubeless ready rims | Tubeless tires
ADDITIONAL INFORMATION
MAXIMALE REIFENGRÖSSE:
Width: 64mm | Diameter: 750mm
ASTM-KLASSIFIZIERUNG:
Level 4
GEWICHTSGRENZE:
130kg
