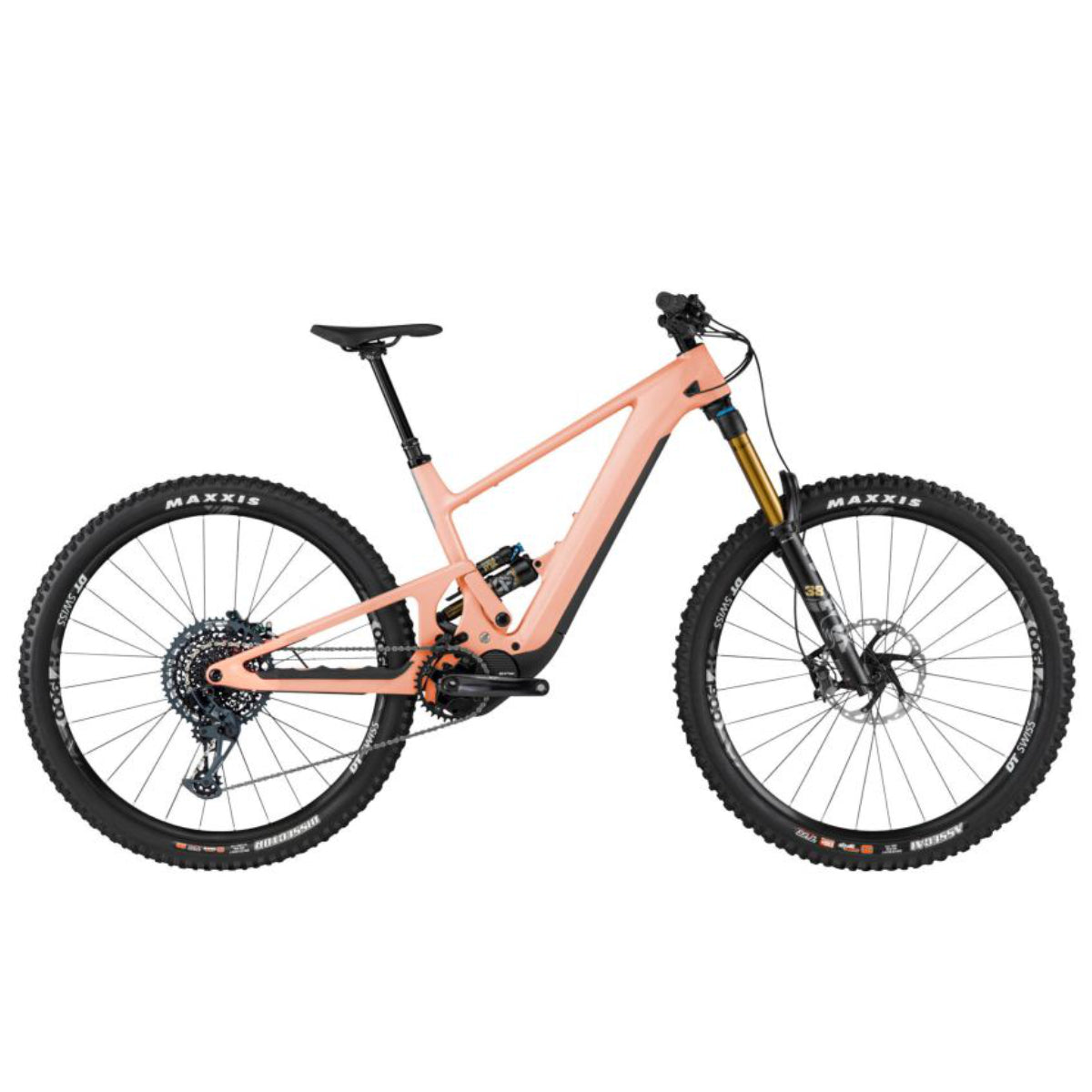

4060 Z ST GX 2024
4060 Z ST GX 2024
AMP SPECS
MOTOR:
Shimano Steps EP8 (DU-EP801)
AKKU:
Darfon 36V | 720Wh | Shimano Steps service included
STEUERUNG DER ANTRIEBSEINHEIT:
Shimano Steps EP8 Left Switch Unit (SW-EM800-L)
DISPLAY:
Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
LADEGERÄT:
Darfon Smart Plus 100-240V | 4A | EU
FRAMESET
RAHMEN:
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Boost 148 | SRAM UDH
GABEL:
Fox 38 Factory GRIP2 | 150mm travel | 44mm rake
SUSPENSION
FEDERGABEL:
Fox 38 Factory GRIP2 | 150mm travel | 44mm rake
DÄMPFER:
Fox Float X Factory | 210x47.5mm
COCKPIT
LENKER:
SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep
VORBAU:
Burgtec Enduro MK3 | 31.8mm bar bore | 35mm length | 0° angle
SATTELSTÜTZE:
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm travel | Triggy Alpha lever
SATTEL:
WTB Silverado Medium Cromoly SL
DRIVETRAIN
ÜBERSETZUNG:
1 x 12
KURBEL:
Shimano FC-M8150 | 165mm length | 34T X-Sync Eagle chainring
KASSETTE:
SRAM GX Eagle (XG-1275) | 10-52T
KETTE:
SRAM GX Eagle
SCHALTWERK:
SRAM GX Eagle
SCHALTHEBEL:
SRAM GX Eagle Trigger
BRAKES
BREMSHEBEL:
SRAM Code RSC
BREMSSCHEIBEN:
SRAM Centerline | 220mm (F) / 200mm (R) | 6-bolt
WHEELS
FELGEN:
DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready
NABEN (V/H):
DT Swiss 370 | Ratchet LN freehub | Straightpull spoke interface | Boost spacing
BEREIFUNG:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
TUBELESS-INFORMATIONEN:
Tubeless ready rims | Tubeless tires
ADDITIONAL INFORMATION
MAXIMALE REIFENGRÖSSE:
Width: 64mm | Diameter: 750mm
ASTM-KLASSIFIZIERUNG:
Level 4
GEWICHTSGRENZE:
130kg
